bandwidthd
- 간단한 시스템 트래픽 모니터링 프로그램으로 서버시스템의 트래픽과 서비스별 트래픽을 알 수 있다.
-------------------------------------------------------------------
http://bandwidthd.sourceforge.net/
http://sourceforge.net/project/showfiles.php?group_id=89685&package_id=94109&release_id=296308
bandwidthd-2.0.1.tgz : (다운로드)
-------------------------------------------------------------------
bandwidthd 관련 의존성 파일
http://www.tcpdump.org/
libpcap-1.0.0.tar.gz : (다운로드)
http://www.libpng.org/ or http://www.libpng.org/pub/png/libpng.html
libpng-1.2.34.tar.gz : (다운로드)
http://www.libgd.org/Downloads
gd-2.0.36RC1.tar.gz : (다운로드)
-------------------------------------------------------------------
1. 다운 및 압축 해제
| [root@server3 ~]# cd Desktop [root@server3 Desktop]# ls bandwidthd-2.0.1.tgz [root@server3 Desktop]# tar xvfz bandwidthd-2.0.1.tgz bandwidthd-2.0.1/ - 중략 bandwidthd-2.0.1/conf.l.c bandwidthd-2.0.1/config.guess bandwidthd-2.0.1/conf.tab.h bandwidthd-2.0.1/README bandwidthd-2.0.1/Makefile.in bandwidthd-2.0.1/htdocs/ bandwidthd-2.0.1/htdocs/logo.gif bandwidthd-2.0.1/htdocs/legend.gif bandwidthd-2.0.1/install-sh bandwidthd-2.0.1/CHANGELOG [root@server3 Desktop]# ls bandwidthd-2.0.1 bandwidthd-2.0.1.tgz [root@server3 Desktop]# mv bandwidthd-2.0.1 /usr/local/src |
2. 설치 정보 확인
| [root@server3 Desktop]# cd /usr/local/src [root@server3 src]# ls bandwidthd-2.0.1 [root@server3 src]# cd bandwidthd-2.0.1/ [root@server3 bandwidthd-2.0.1]# ls CHANGELOG TODO conf.tab.c config.sub htdocs INSTALL.Unix bandwidthd.c conf.tab.h configure install-sh INSTALL.Windows bandwidthd.h conf.y configure.in phphtdocs Makefile.in conf.l config.guess etc schema.postgresql README conf.l.c config.h.in graph.c [root@server3 bandwidthd-2.0.1]# vi INSTALL.Unix #### INSTALLATION # You need 3 dependencies to make Bandwidthd work: - 3개의 파일이 의존성에 걸린다. 설치가 안되어 있으면 설치를 한다. libpcap from http://www.tcpdump.org/ libpng from http://www.libpng.org/ libgd from http://www.boutell.com/gd/ |
3. 의존성 해결
- APM을 RPM으로 설치한 경우에는 libpcap, libpng, libgd 도 devel과 같이 설치해 준다.
- APM을 소스로 설치한 경우에는 libpcap, libpng, libgd 도 소스로 설치해 준다.
- libpcap, libpng, libgd 를 소스로 설치한 후 bandwidth 컴파일시 제대로 인식을 못한다면 각각의 devel (RPM) 을 설치해 준다.
3-1. libpcap 설치
http://www.tcpdump.org/
libpcap-1.0.0.tar.gz : (다운로드)
| [root@server3 ~]# cd Desktop [root@server3 Desktop]# ls bandwidthd-2.0.1.tgz libpcap-1.0.0.tar.gz gd-2.0.36RC1.tar.gz libpng-1.2.34.tar.gz [root@server3 Desktop]# tar xvfz libpcap-1.0.0.tar.gz libpcap-1.0.0/ - 중략 libpcap-1.0.0/Win32/Src/ libpcap-1.0.0/Win32/Src/ffs.c libpcap-1.0.0/Win32/Src/gai_strerror.c libpcap-1.0.0/Win32/Src/getaddrinfo.c libpcap-1.0.0/Win32/Src/getnetbynm.c libpcap-1.0.0/Win32/Src/getnetent.c libpcap-1.0.0/Win32/Src/getopt.c libpcap-1.0.0/Win32/Src/getservent.c libpcap-1.0.0/Win32/Src/inet_aton.c libpcap-1.0.0/Win32/Src/inet_net.c libpcap-1.0.0/Win32/Src/inet_pton.c [root@server3 Desktop]# ls gd-2.0.36RC1.tar.gz libpcap-1.0.0.tar.gz libpcap-1.0.0 bandwidthd-2.0.1.tgz libpng-1.2.34.tar.gz [root@server3 Desktop]# mv libpcap-1.0.0 /usr/local/src [root@server3 Desktop]# cd /usr/local/src [root@server3 src]# ls libpcap-1.0.0 bandwidthd-2.0.1 [root@server3 src]# cd libpcap-1.0.0/ [root@server3 libpcap-1.0.0]# ls CHANGES lbl pcap_compile.3pcap.in CREDITS llc.h pcap_create.3pcap ChmodBPF missing pcap_datalink.3pcap.in INSTALL.txt mkdep pcap_datalink_name_to_val.3pcap LICENSE msdos pcap_datalink_val_to_name.3pcap Makefile.in nametoaddr.c pcap_dump.3pcap README net pcap_dump_close.3pcap README.Win32 nlpid.h pcap_dump_file.3pcap README.aix optimize.c pcap_dump_flush.3pcap README.dag org.tcpdump.chmod_bpf.plist pcap_dump_ftell.3pcap README.hpux packaging pcap_dump_open.3pcap.in README.linux pcap pcap_file.3pcap README.macosx pcap-bpf.c pcap_fileno.3pcap README.septel pcap-bpf.h pcap_findalldevs.3pcap README.sita pcap-bt-linux.c pcap_free_datalinks.3pcap README.tru64 pcap-bt-linux.h pcap_freealldevs.3pcap SUNOS4 pcap-config.1 pcap_freecode.3pcap TODO pcap-config.in pcap_get_selectable_fd.3pcap - 중략 [root@server3 libpcap-1.0.0]# vi README.linux [root@server3 libpcap-1.0.0]# ./configure --help `configure' configures this package to adapt to many kinds of systems. Usage: ./configure [OPTION]... [VAR=VALUE]... To assign environment variables (e.g., CC, CFLAGS...), specify them as VAR=VALUE. See below for descriptions of some of the useful variables. Defaults for the options are specified in brackets. Configuration: -h, --help display this help and exit --help=short display options specific to this package --help=recursive display the short help of all the included packages -V, --version display version information and exit -q, --quiet, --silent do not print `checking...' messages --cache-file=FILE cache test results in FILE [disabled] -C, --config-cache alias for `--cache-file=config.cache' -n, --no-create do not create output files --srcdir=DIR find the sources in DIR [configure dir or `..'] Installation directories: --prefix=PREFIX install architecture-independent files in PREFIX [/usr/local] --exec-prefix=EPREFIX install architecture-dependent files in EPREFIX [PREFIX] By default, `make install' will install all the files in `/usr/local/bin', `/usr/local/lib' etc. You can specify an installation prefix other than `/usr/local' using `--prefix', for instance `--prefix=$HOME'. For better control, use the options below. Fine tuning of the installation directories: --bindir=DIR user executables [EPREFIX/bin] --sbindir=DIR system admin executables [EPREFIX/sbin] --libexecdir=DIR program executables [EPREFIX/libexec] --sysconfdir=DIR read-only single-machine data [PREFIX/etc] --sharedstatedir=DIR modifiable architecture-independent data [PREFIX/com] --localstatedir=DIR modifiable single-machine data [PREFIX/var] --libdir=DIR object code libraries [EPREFIX/lib] --includedir=DIR C header files [PREFIX/include] --oldincludedir=DIR C header files for non-gcc [/usr/include] --datarootdir=DIR read-only arch.-independent data root [PREFIX/share] --datadir=DIR read-only architecture-independent data [DATAROOTDIR] --infodir=DIR info documentation [DATAROOTDIR/info] --localedir=DIR locale-dependent data [DATAROOTDIR/locale] --mandir=DIR man documentation [DATAROOTDIR/man] --docdir=DIR documentation root [DATAROOTDIR/doc/PACKAGE] --htmldir=DIR html documentation [DOCDIR] --dvidir=DIR dvi documentation [DOCDIR] --pdfdir=DIR pdf documentation [DOCDIR] --psdir=DIR ps documentation [DOCDIR] System types: --build=BUILD configure for building on BUILD [guessed] --host=HOST cross-compile to build programs to run on HOST [BUILD] --target=TARGET configure for building compilers for TARGET [HOST] Optional Features: --disable-FEATURE do not include FEATURE (same as --enable-FEATURE=no) --enable-FEATURE[=ARG] include FEATURE [ARG=yes] --disable-largefile omit support for large files --disable-protochain disable \"protochain\" insn --enable-ipv6 build IPv6-capable version [default=yes, if getaddrinfo available] --enable-optimizer-dbg build optimizer debugging code --enable-yydebug build parser debugging code Optional Packages: --with-PACKAGE[=ARG] use PACKAGE [ARG=yes] --without-PACKAGE do not use PACKAGE (same as --with-PACKAGE=no) --without-gcc don't use gcc --with-sita include SITA support --with-pcap=TYPE use packet capture TYPE --with-dag[=DIR] include Endace DAG support ("yes", "no" or DIR; default="yes" on BSD and Linux if present) --with-dag-includes=DIR Endace DAG include directory --with-dag-libraries=DIR Endace DAG library directory --with-septel[=DIR] include Septel support (located in directory DIR, if supplied). default=yes, on Linux, if present --without-flex don't use flex --without-bison don't use bison Some influential environment variables: CC C compiler command CFLAGS C compiler flags LDFLAGS linker flags, e.g. -L<lib dir> if you have libraries in a nonstandard directory <lib dir> LIBS libraries to pass to the linker, e.g. -l<library> CPPFLAGS C/C++/Objective C preprocessor flags, e.g. -I<include dir> if you have headers in a nonstandard directory <include dir> CPP C preprocessor Use these variables to override the choices made by `configure' or to help it to find libraries and programs with nonstandard names/locations. [root@server3 libpcap-1.0.0]# ./configure --prefix=/usr/local/libpcap - 중략 config.status: creating Makefile config.status: creating pcap-filter.manmisc config.status: creating pcap-linktype.manmisc config.status: creating pcap-savefile.manfile config.status: creating pcap.3pcap config.status: creating pcap_compile.3pcap config.status: creating pcap_datalink.3pcap config.status: creating pcap_dump_open.3pcap config.status: creating pcap_list_datalinks.3pcap config.status: creating pcap_open_dead.3pcap config.status: creating pcap_open_offline.3pcap config.status: creating config.h [root@server3 libpcap-1.0.0]# make gcc -O2 -fPIC -I. -DHAVE_CONFIG_H -D_U_="__attribute__((unused))" -c ./pcap-linux.c gcc -O2 -fPIC -I. -DHAVE_CONFIG_H -D_U_="__attribute__((unused))" -c ./pcap-usb-linux.c gcc -O2 -fPIC -I. -DHAVE_CONFIG_H -D_U_="__attribute__((unused))" -c ./fad-getad.c sed -e 's/.*/static const char pcap_version_string[] = "libpcap version &";/' ./VERSION > version.h gcc -O2 -fPIC -I. -DHAVE_CONFIG_H -D_U_="__attribute__((unused))" -c ./pcap.c gcc -O2 -fPIC -I. -DHAVE_CONFIG_H -D_U_="__attribute__((unused))" -c ./inet.c gcc -O2 -fPIC -I. -DHAVE_CONFIG_H -D_U_="__attribute__((unused))" -c ./gencode.c gcc -O2 -fPIC -I. -DHAVE_CONFIG_H -D_U_="__attribute__((unused))" -c ./optimize.c gcc -O2 -fPIC -I. -DHAVE_CONFIG_H -D_U_="__attribute__((unused))" -c ./nametoaddr.c gcc -O2 -fPIC -I. -DHAVE_CONFIG_H -D_U_="__attribute__((unused))" -c ./etherent.c gcc -O2 -fPIC -I. -DHAVE_CONFIG_H -D_U_="__attribute__((unused))" -c ./savefile.c gcc -O2 -fPIC -I. -DHAVE_CONFIG_H -D_U_="__attribute__((unused))" -c bpf_filter.c gcc -O2 -fPIC -I. -DHAVE_CONFIG_H -D_U_="__attribute__((unused))" -c ./bpf_image.c gcc -O2 -fPIC -I. -DHAVE_CONFIG_H -D_U_="__attribute__((unused))" -c ./bpf_dump.c ./runlex.sh flex -Ppcap_ -oscanner.c scanner.l bison -y -p pcap_ -d grammar.y mv y.tab.c grammar.c mv y.tab.h tokdefs.h gcc -O2 -fPIC -I. -DHAVE_CONFIG_H -D_U_="__attribute__((unused))" -c scanner.c gcc -O2 -fPIC -I. -DHAVE_CONFIG_H -D_U_="__attribute__((unused))" -Dyylval=pcap_lval -c grammar.c sed -e 's/.*/char pcap_version[] = "&";/' ./VERSION > version.c gcc -O2 -fPIC -I. -DHAVE_CONFIG_H -D_U_="__attribute__((unused))" -c version.c ar rc libpcap.a pcap-linux.o pcap-usb-linux.o fad-getad.o pcap.o inet.o gencode.o optimize.o nametoaddr.o etherent.o savefile.o bpf_filter.o bpf_image.o bpf_dump.o scanner.o grammar.o version.o ranlib libpcap.a sed -e 's|@includedir[@]|/usr/local/libpcap/include|g' \ -e 's|@libdir[@]|/usr/local/libpcap/lib|g' \ -e 's|@DEPLIBS[@]||g' \ pcap-config.in >pcap-config.tmp mv pcap-config.tmp pcap-config chmod a+x pcap-config [root@server3 libpcap-1.0.0]# make install [ -d /usr/local/libpcap/lib ] || \ (mkdir -p /usr/local/libpcap/lib; chmod 755 /usr/local/libpcap/lib) /usr/bin/install -c -m 644 libpcap.a /usr/local/libpcap/lib/libpcap.a ranlib /usr/local/libpcap/lib/libpcap.a [ -d /usr/local/libpcap/include ] || \ (mkdir -p /usr/local/libpcap/include; chmod 755 /usr/local/libpcap/include) [ -d /usr/local/libpcap/include/pcap ] || \ (mkdir -p /usr/local/libpcap/include/pcap; chmod 755 /usr/local/libpcap/include/pcap) [ -d /usr/local/libpcap/share/man/man1 ] || \ (mkdir -p /usr/local/libpcap/share/man/man1; chmod 755 /usr/local/libpcap/share/man/man1) [ -d /usr/local/libpcap/share/man/man3 ] || \ (mkdir -p /usr/local/libpcap/share/man/man3; chmod 755 /usr/local/libpcap/share/man/man3) [ -d /usr/local/libpcap/share/man/man5 ] || \ (mkdir -p /usr/local/libpcap/share/man/man5; chmod 755 /usr/local/libpcap/share/man/man5) [ -d /usr/local/libpcap/share/man/man7 ] || \ (mkdir -p /usr/local/libpcap/share/man/man7; chmod 755 /usr/local/libpcap/share/man/man7) - 중략 for i in pcap-savefile.manfile.in; do \ /usr/bin/install -c -m 644 ./`echo $i | sed 's/.manfile.in/.manfile/'` \ /usr/local/libpcap/share/man/man5/`echo $i | sed 's/.manfile.in/.5/'`; done for i in pcap-filter.manmisc.in pcap-linktype.manmisc.in; do \ /usr/bin/install -c -m 644 ./`echo $i | sed 's/.manmisc.in/.manmisc/'` \ /usr/local/libpcap/share/man/man7/`echo $i | sed 's/.manmisc.in/.7/'`; done [root@server3 libpcap-1.0.0]# |
3-2. libpng 설치
http://www.libpng.org/ or http://www.libpng.org/pub/png/libpng.html
libpng-1.2.34.tar.gz : (다운로드)
| [root@server3 ~]# cd Desktop [root@server3 Desktop]# ls bandwidthd-2.0.1 gd-2.0.36RC1.tar.gz libpng-1.2.34.tar.gz bandwidthd-2.0.1.tgz libpcap-1.0.0.tar.gz [root@server3 Desktop]# tar xvfz libpng-1.2.34.tar.gz libpng-1.2.34/ - 중략 libpng-1.2.34/projects/visualc71/README.txt libpng-1.2.34/projects/visualc71/libpng.vcproj libpng-1.2.34/projects/visualc71/libpng.sln libpng-1.2.34/projects/visualc71/README_zlib.txt libpng-1.2.34/projects/visualc71/PRJ0041.mak libpng-1.2.34/projects/visualc71/zlib.vcproj libpng-1.2.34/projects/visualc71/pngtest.vcproj libpng-1.2.34/projects/visualc6/libpng.dsw libpng-1.2.34/projects/visualc6/README.txt libpng-1.2.34/projects/visualc6/libpng.dsp libpng-1.2.34/projects/visualc6/pngtest.dsp libpng-1.2.34/projects/beos/x86-shared.proj libpng-1.2.34/projects/beos/x86-static.proj libpng-1.2.34/projects/beos/x86-static.txt libpng-1.2.34/projects/beos/x86-shared.txt [root@server3 Desktop]# ls 111.txt 222.txt gd-2.0.36RC1.tar.gz gd.txt~ libpng-1.2.34 111.txt~ bandwidthd-2.0.1.tgz gd-lib.txt~ libpcap-1.0.0.tar.gz libpng-1.2.34.tar.gz [root@server3 Desktop]# mv libpng-1.2.34 /usr/local/src [root@server3 Desktop]# cd /usr/local/src [root@server3 src]# ls bandwidthd-2.0.1 httpd-2.2.11 libmcrypt-2.5.8 mysql-5.1.30 php-5.2.8.tar.bz2 freetype-2.3.8 httpd-2.2.11.tar.bz2 libpcap-1.0.0 mysql-5.1.30.tar.gz tomcat-connectors-1.2.27-src gd-2.0.36RC1 jpeg-6b libpng-1.2.34 php-5.2.8 zlib-1.2.3 [root@server3 src]# cd libpng-1.2.34/ [root@server3 libpng-1.2.34]# ls ANNOUNCE libpng-config libpng12_la-pngrutil.o libpng_la-pngrio.o pngbar.png CHANGES libpng.3 libpng12_la-pngset.lo libpng_la-pngrtran.lo pngconf.h INSTALL libpng.la libpng12_la-pngset.o libpng_la-pngrtran.o pngerror.c KNOWNBUG libpng.pc libpng12_la-pngtrans.lo libpng_la-pngrutil.lo pnggccrd.c LICENSE libpng.sym libpng12_la-pngtrans.o libpng_la-pngrutil.o pngget.c Makefile libpng.vers libpng12_la-pngwio.lo libpng_la-pngset.lo pngmem.c Makefile.am libpng12-config libpng12_la-pngwio.o libpng_la-pngset.o pngnow.png Makefile.in libpng12.la libpng12_la-pngwrite.lo libpng_la-pngtrans.lo pngpread.c README libpng12.pc libpng12_la-pngwrite.o libpng_la-pngtrans.o pngread.c TODO libpng12_la-png.lo libpng12_la-pngwtran.lo libpng_la-pngwio.lo pngrio.c Y2KINFO libpng12_la-png.o libpng12_la-pngwtran.o libpng_la-pngwio.o pngrtran.c aclocal.m4 libpng12_la-pngerror.lo libpng12_la-pngwutil.lo libpng_la-pngwrite.lo pngrutil.c autogen.sh libpng12_la-pngerror.o libpng12_la-pngwutil.o libpng_la-pngwrite.o pngset.c config.guess libpng12_la-pngget.lo libpng_la-png.lo libpng_la-pngwtran.lo pngtest.c config.h libpng12_la-pngget.o libpng_la-png.o libpng_la-pngwtran.o pngtest.png config.h.in libpng12_la-pngmem.lo libpng_la-pngerror.lo libpng_la-pngwutil.lo pngtrans.c config.log libpng12_la-pngmem.o libpng_la-pngerror.o libpng_la-pngwutil.o pngvcrd.c config.status libpng12_la-pngpread.lo libpng_la-pngget.lo libpngpf.3 pngwio.c config.sub libpng12_la-pngpread.o libpng_la-pngget.o libtool pngwrite.c configure libpng12_la-pngread.lo libpng_la-pngmem.lo ltmain.sh pngwtran.c configure.ac libpng12_la-pngread.o libpng_la-pngmem.o missing pngwutil.c contrib libpng12_la-pngrio.lo libpng_la-pngpread.lo mkinstalldirs projects depcomp libpng12_la-pngrio.o libpng_la-pngpread.o png.5 scripts example.c libpng12_la-pngrtran.lo libpng_la-pngread.lo png.c stamp-h1 install-sh libpng12_la-pngrtran.o libpng_la-pngread.o png.h test-pngtest.sh libpng-1.2.34.txt libpng12_la-pngrutil.lo libpng_la-pngrio.lo pngbar.jpg [root@server3 libpng-1.2.34]# ./configure --help `configure' configures libpng 1.2.34 to adapt to many kinds of systems. Usage: ./configure [OPTION]... [VAR=VALUE]... To assign environment variables (e.g., CC, CFLAGS...), specify them as VAR=VALUE. See below for descriptions of some of the useful variables. Defaults for the options are specified in brackets. Configuration: -h, --help display this help and exit --help=short display options specific to this package --help=recursive display the short help of all the included packages -V, --version display version information and exit -q, --quiet, --silent do not print `checking...' messages --cache-file=FILE cache test results in FILE [disabled] -C, --config-cache alias for `--cache-file=config.cache' -n, --no-create do not create output files --srcdir=DIR find the sources in DIR [configure dir or `..'] Installation directories: --prefix=PREFIX install architecture-independent files in PREFIX [/usr/local] --exec-prefix=EPREFIX install architecture-dependent files in EPREFIX [PREFIX] By default, `make install' will install all the files in `/usr/local/bin', `/usr/local/lib' etc. You can specify an installation prefix other than `/usr/local' using `--prefix', for instance `--prefix=$HOME'. For better control, use the options below. Fine tuning of the installation directories: --bindir=DIR user executables [EPREFIX/bin] --sbindir=DIR system admin executables [EPREFIX/sbin] --libexecdir=DIR program executables [EPREFIX/libexec] --sysconfdir=DIR read-only single-machine data [PREFIX/etc] --sharedstatedir=DIR modifiable architecture-independent data [PREFIX/com] --localstatedir=DIR modifiable single-machine data [PREFIX/var] --libdir=DIR object code libraries [EPREFIX/lib] --includedir=DIR C header files [PREFIX/include] --oldincludedir=DIR C header files for non-gcc [/usr/include] --datarootdir=DIR read-only arch.-independent data root [PREFIX/share] --datadir=DIR read-only architecture-independent data [DATAROOTDIR] --infodir=DIR info documentation [DATAROOTDIR/info] --localedir=DIR locale-dependent data [DATAROOTDIR/locale] --mandir=DIR man documentation [DATAROOTDIR/man] --docdir=DIR documentation root [DATAROOTDIR/doc/libpng] --htmldir=DIR html documentation [DOCDIR] --dvidir=DIR dvi documentation [DOCDIR] --pdfdir=DIR pdf documentation [DOCDIR] --psdir=DIR ps documentation [DOCDIR] Program names: --program-prefix=PREFIX prepend PREFIX to installed program names --program-suffix=SUFFIX append SUFFIX to installed program names --program-transform-name=PROGRAM run sed PROGRAM on installed program names System types: --build=BUILD configure for building on BUILD [guessed] --host=HOST cross-compile to build programs to run on HOST [BUILD] Optional Features: --disable-option-checking ignore unrecognized --enable/--with options --disable-FEATURE do not include FEATURE (same as --enable-FEATURE=no) --enable-FEATURE[=ARG] include FEATURE [ARG=yes] --enable-maintainer-mode enable make rules and dependencies not useful (and sometimes confusing) to the casual installer --disable-dependency-tracking speeds up one-time build --enable-dependency-tracking do not reject slow dependency extractors --enable-shared[=PKGS] build shared libraries [default=yes] --enable-static[=PKGS] build static libraries [default=yes] --enable-fast-install[=PKGS] optimize for fast installation [default=yes] --disable-libtool-lock avoid locking (might break parallel builds) Optional Packages: --with-PACKAGE[=ARG] use PACKAGE [ARG=yes] --without-PACKAGE do not use PACKAGE (same as --with-PACKAGE=no) --with-gnu-ld assume the C compiler uses GNU ld [default=no] --with-pic try to use only PIC/non-PIC objects [default=use both] --with-pkgconfigdir Use the specified pkgconfig dir (default is libdir/pkgconfig) --with-binconfigs Generate shell libpng-config scripts as well as pkg-config data [default=yes] --with-libpng-compat Generate the obsolete libpng.so library [default=yes] Some influential environment variables: CC C compiler command CFLAGS C compiler flags LDFLAGS linker flags, e.g. -L<lib dir> if you have libraries in a nonstandard directory <lib dir> LIBS libraries to pass to the linker, e.g. -l<library> CPPFLAGS C/C++/Objective C preprocessor flags, e.g. -I<include dir> if you have headers in a nonstandard directory <include dir> CPP C preprocessor Use these variables to override the choices made by `configure' or to help it to find libraries and programs with nonstandard names/locations. Report bugs to <png-mng-implement@lists.sourceforge.net>. [root@server3 libpng-1.2.34]# ./configure --prefix=/usr/local/libpng - 중략 config.status: creating Makefile config.status: creating libpng.pc config.status: creating libpng-config config.status: creating config.h config.status: config.h is unchanged config.status: executing depfiles commands config.status: executing libtool commands [root@server3 libpng-1.2.34]# make - 중략 libtool: link: (cd ".libs" && rm -f "libpng.so.3" && ln -s "libpng.so.3.34.0" "libpng.so.3") libtool: link: (cd ".libs" && rm -f "libpng.so" && ln -s "libpng.so.3.34.0" "libpng.so") libtool: link: ar cru .libs/libpng.a libpng_la-png.o libpng_la-pngset.o libpng_la-pngget.o libpng_la-pngrutil.o libpng_la-pngtrans.o libpng_la-pngwutil.o libpng_la-pngread.o libpng_la-pngrio.o libpng_la-pngwio.o libpng_la-pngwrite.o libpng_la-pngrtran.o libpng_la-pngwtran.o libpng_la-pngmem.o libpng_la-pngerror.o libpng_la-pngpread.o libtool: link: ranlib .libs/libpng.a libtool: link: ( cd ".libs" && rm -f "libpng.la" && ln -s "../libpng.la" "libpng.la" ) cp libpng-config libpng12-config cp libpng.pc libpng12.pc make[1]: Leaving directory `/usr/local/src/libpng-1.2.34' [root@server3 libpng-1.2.34]# make install - 중략 make[2]: Leaving directory `/usr/local/src/libpng-1.2.34' test -z "/usr/local/libpng/share/man/man3" || /bin/mkdir -p "/usr/local/libpng/share/man/man3" /usr/bin/install -c -m 644 './libpng.3' '/usr/local/libpng/share/man/man3/libpng.3' /usr/bin/install -c -m 644 './libpngpf.3' '/usr/local/libpng/share/man/man3/libpngpf.3' test -z "/usr/local/libpng/share/man/man5" || /bin/mkdir -p "/usr/local/libpng/share/man/man5" /usr/bin/install -c -m 644 './png.5' '/usr/local/libpng/share/man/man5/png.5' test -z "/usr/local/libpng/lib/pkgconfig" || /bin/mkdir -p "/usr/local/libpng/lib/pkgconfig" /usr/bin/install -c -m 644 'libpng12.pc' '/usr/local/libpng/lib/pkgconfig/libpng12.pc' test -z "/usr/local/libpng/include/libpng12" || /bin/mkdir -p "/usr/local/libpng/include/libpng12" /usr/bin/install -c -m 644 'png.h' '/usr/local/libpng/include/libpng12/png.h' /usr/bin/install -c -m 644 'pngconf.h' '/usr/local/libpng/include/libpng12/pngconf.h' make install-data-hook make[2]: Entering directory `/usr/local/src/libpng-1.2.34' cd /usr/local/libpng/include; rm -f png.h pngconf.h cd /usr/local/libpng/include; ln -s libpng12/png.h png.h cd /usr/local/libpng/include; ln -s libpng12/pngconf.h pngconf.h cd /usr/local/libpng/lib/pkgconfig; rm -f libpng.pc cd /usr/local/libpng/lib/pkgconfig; ln -s libpng12.pc libpng.pc make[2]: Leaving directory `/usr/local/src/libpng-1.2.34' make[1]: Leaving directory `/usr/local/src/libpng-1.2.34' [root@server3 libpng-1.2.34]# |
3-3. libgd 설치
http://www.libgd.org/Downloads
gd-2.0.36RC1.tar.gz : (다운로드)
| [root@server3 ~]# cd Desktop [root@server3 Desktop]# ls 111.txt 222.txt bandwidthd-2.0.1.tgz gd-lib.txt~ libpcap-1.0.0.tar.gz libpng-1.2.34.tar.gz 111.txt~ 222.txt~ gd-2.0.36RC1.tar.gz gd.txt~ libpng-1.2.34 [root@server3 Desktop]# tar xvfz gd-2.0.36RC1.tar.gz gd-2.0.36RC1/VMS/CONFIGURE.COM - 중략 gd-2.0.36RC1/windows/Makefile gd-2.0.36RC1/windows/libgd.rc gd-2.0.36RC1/aclocal.m4 gd-2.0.36RC1/Makefile.in gd-2.0.36RC1/configure [root@server3 Desktop]# mv gd-2.0.36RC1 /usr/local/src [root@server3 Desktop]# ls 111.txt 222.txt 333.txt gd-2.0.36RC1 gd-lib.txt~ libpcap-1.0.0.tar.gz libpng-1.2.34.tar.gz 111.txt~ 222.txt~ bandwidthd-2.0.1.tgz gd-2.0.36RC1.tar.gz gd.txt~ libpng-1.2.34 [root@server3 Desktop]# cd /usr/local/src [root@server3 src]# ls bandwidthd-2.0.1 httpd-2.2.11 libmcrypt-2.5.8 mysql-5.1.30 php-5.2.8.tar.bz2 freetype-2.3.8 httpd-2.2.11.tar.bz2 libpcap-1.0.0 mysql-5.1.30.tar.gz tomcat-connectors-1.2.27-src gd-2.0.36RC1 jpeg-6b libpng-1.2.34 php-5.2.8 zlib-1.2.3 [root@server3 src]# cd gd-2.0.36RC1/ [root@server3 gd-2.0.36RC1]# ls CMakeLists.txt demoin.gif gd2topng.c gd_png.c gdfontl.h gdparttopng.c mkinstalldirs COPYING demoin.png gd2topng.o gd_png.lo gdfontl.lo gdparttopng.o netware ChangeLog depcomp gd_gd.c gd_png.o gdfontl.o gdtables.c pngtogd INSTALL entities.h gd_gd.lo gd_security.c gdfontmb.c gdtables.lo pngtogd.c Makefile entities.html gd_gd.o gd_security.lo gdfontmb.h gdtables.o pngtogd.o Makefile.am entities.tcl gd_gd2.c gd_security.o gdfontmb.lo gdtest pngtogd2 Makefile.in err.out gd_gd2.lo gd_ss.c gdfontmb.o gdtest.c pngtogd2.c NEWS fontconfigtest gd_gd2.o gd_ss.lo gdfonts.c gdtest.o pngtogd2.o README-JPEG.TXT fontconfigtest.c gd_gif_in.c gd_ss.o gdfonts.h gdtestft readme.jpn README.TESTING fontconfigtest.o gd_gif_in.lo gd_topal.c gdfonts.lo gdtestft.c stamp-h1 README.TXT fontsizetest gd_gif_in.o gd_topal.lo gdfonts.o gdtestft.o strlcpy.c VMS fontsizetest.c gd_gif_out.c gd_topal.o gdfontt.c gdtopng test aclocal.m4 fontsizetest.o gd_gif_out.lo gd_wbmp.c gdfontt.h gdtopng.c testac annotate fontwheeltest gd_gif_out.o gd_wbmp.lo gdfontt.lo gdtopng.o testac.c annotate.c fontwheeltest.c gd_io.c gd_wbmp.o gdfontt.o gdxpm.c testac.o annotate.o fontwheeltest.o gd_io.h gdcache.c gdft.c gdxpm.lo tests bdftogd gd.c gd_io.lo gdcache.h gdft.lo gdxpm.o testtr bootstrap.sh gd.h gd_io.o gdcache.lo gdft.o gifanimtest testtr.c circletexttest gd.lo gd_io_dp.c gdcache.o gdfx.c gifanimtest.c testtr.o circletexttest.c gd.o gd_io_dp.lo gdcmpgif gdfx.h gifanimtest.o wbmp.c circletexttest.o gd2copypal gd_io_dp.o gdcmpgif.c gdfx.lo giftogd2 wbmp.h cmake gd2copypal.c gd_io_file.c gdcmpgif.o gdfx.o giftogd2.c wbmp.lo config gd2copypal.o gd_io_file.lo gddemo gdhelpers.c giftogd2.o wbmp.o config.h gd2time gd_io_file.o gddemo.c gdhelpers.h index.html webpng config.h.cmake gd2time.c gd_io_ss.c gddemo.o gdhelpers.lo install-item webpng.c config.hin gd2time.o gd_io_ss.lo gdfontg.c gdhelpers.o install-sh webpng.o config.log gd2togif gd_io_ss.o gdfontg.h gdkanji.c jisx0208.h windows config.status gd2togif.c gd_jpeg.c gdfontg.lo gdkanji.lo libgd.la configure gd2togif.o gd_jpeg.lo gdfontg.o gdkanji.o libtool configure.ac gd2topng gd_jpeg.o gdfontl.c gdparttopng missing [root@server3 gd-2.0.36RC1]# ./configure --help `configure' configures GD 2.0.36 to adapt to many kinds of systems. Usage: ./configure [OPTION]... [VAR=VALUE]... To assign environment variables (e.g., CC, CFLAGS...), specify them as VAR=VALUE. See below for descriptions of some of the useful variables. Defaults for the options are specified in brackets. Configuration: -h, --help display this help and exit --help=short display options specific to this package --help=recursive display the short help of all the included packages -V, --version display version information and exit -q, --quiet, --silent do not print `checking...' messages --cache-file=FILE cache test results in FILE [disabled] -C, --config-cache alias for `--cache-file=config.cache' -n, --no-create do not create output files --srcdir=DIR find the sources in DIR [configure dir or `..'] Installation directories: --prefix=PREFIX install architecture-independent files in PREFIX [/usr/local] --exec-prefix=EPREFIX install architecture-dependent files in EPREFIX [PREFIX] By default, `make install' will install all the files in `/usr/local/bin', `/usr/local/lib' etc. You can specify an installation prefix other than `/usr/local' using `--prefix', for instance `--prefix=$HOME'. For better control, use the options below. Fine tuning of the installation directories: --bindir=DIR user executables [EPREFIX/bin] --sbindir=DIR system admin executables [EPREFIX/sbin] --libexecdir=DIR program executables [EPREFIX/libexec] --sysconfdir=DIR read-only single-machine data [PREFIX/etc] --sharedstatedir=DIR modifiable architecture-independent data [PREFIX/com] --localstatedir=DIR modifiable single-machine data [PREFIX/var] --libdir=DIR object code libraries [EPREFIX/lib] --includedir=DIR C header files [PREFIX/include] --oldincludedir=DIR C header files for non-gcc [/usr/include] --datarootdir=DIR read-only arch.-independent data root [PREFIX/share] --datadir=DIR read-only architecture-independent data [DATAROOTDIR] --infodir=DIR info documentation [DATAROOTDIR/info] --localedir=DIR locale-dependent data [DATAROOTDIR/locale] --mandir=DIR man documentation [DATAROOTDIR/man] --docdir=DIR documentation root [DATAROOTDIR/doc/gd] --htmldir=DIR html documentation [DOCDIR] --dvidir=DIR dvi documentation [DOCDIR] --pdfdir=DIR pdf documentation [DOCDIR] --psdir=DIR ps documentation [DOCDIR] Program names: --program-prefix=PREFIX prepend PREFIX to installed program names --program-suffix=SUFFIX append SUFFIX to installed program names --program-transform-name=PROGRAM run sed PROGRAM on installed program names X features: --x-includes=DIR X include files are in DIR --x-libraries=DIR X library files are in DIR System types: --build=BUILD configure for building on BUILD [guessed] --host=HOST cross-compile to build programs to run on HOST [BUILD] --target=TARGET configure for building compilers for TARGET [HOST] Optional Features: --disable-FEATURE do not include FEATURE (same as --enable-FEATURE=no) --enable-FEATURE[=ARG] include FEATURE [ARG=yes] --disable-dependency-tracking speeds up one-time build --enable-dependency-tracking do not reject slow dependency extractors --enable-shared[=PKGS] build shared libraries [default=yes] --enable-static[=PKGS] build static libraries [default=yes] --enable-fast-install[=PKGS] optimize for fast installation [default=yes] --disable-libtool-lock avoid locking (might break parallel builds) --disable-rpath do not hardcode runtime library paths Optional Packages: --with-PACKAGE[=ARG] use PACKAGE [ARG=yes] --without-PACKAGE do not use PACKAGE (same as --with-PACKAGE=no) --with-gnu-ld assume the C compiler uses GNU ld [default=no] --with-pic try to use only PIC/non-PIC objects [default=use both] --with-tags[=TAGS] include additional configurations [automatic] --with-x use the X Window System --with-gnu-ld assume the C compiler uses GNU ld default=no --with-libiconv-prefix[=DIR] search for libiconv in DIR/include and DIR/lib --without-libiconv-prefix don't search for libiconv in includedir and libdir --with-png=DIR where to find the png library --with-freetype=DIR where to find the freetype 2.x library --with-fontconfig=DIR where to find the fontconfig library --with-jpeg=DIR where to find the jpeg library --with-xpm=DIR where to find the xpm library Some influential environment variables: CC C compiler command CFLAGS C compiler flags LDFLAGS linker flags, e.g. -L<lib dir> if you have libraries in a nonstandard directory <lib dir> LIBS libraries to pass to the linker, e.g. -l<library> CPPFLAGS C/C++/Objective C preprocessor flags, e.g. -I<include dir> if you have headers in a nonstandard directory <include dir> CPP C preprocessor CXX C++ compiler command CXXFLAGS C++ compiler flags CXXCPP C++ preprocessor F77 Fortran 77 compiler command FFLAGS Fortran 77 compiler flags XMKMF Path to xmkmf, Makefile generator for X Window System Use these variables to override the choices made by `configure' or to help it to find libraries and programs with nonstandard names/locations. Report bugs to <http://bugs.libgd.org>. [root@server3 gd-2.0.36RC1]# ./configure --prefix=/usr/local/libgd libpng 를 자동으로 지원하지 못하는 경우 경로를 적어준다. ./configure --prefix=/usr/local/libgd --with-png=/usr/local/libpng - 중략 ** Configuration summary for gd 2.0.36: Support for PNG library: yes Support for JPEG library: no Support for Freetype 2.x library: no Support for Fontconfig library: no Support for Xpm library: no Support for pthreads: yes configure: creating ./config.status config.status: creating Makefile config.status: creating config/Makefile config.status: creating config/gdlib-config config.status: creating test/Makefile config.status: creating config.h config.status: executing depfiles commands [root@server3 gd-2.0.36RC1]# make - 중략 make[2]: Leaving directory `/usr/local/src/gd-2.0.36RC1' make[1]: Leaving directory `/usr/local/src/gd-2.0.36RC1' [root@server3 gd-2.0.36RC1]# make install - 중략 make[2]: Leaving directory `/usr/local/src/gd-2.0.36RC1' make[1]: Leaving directory `/usr/local/src/gd-2.0.36RC1' [root@server3 gd-2.0.36RC1]# |
4. bandwidthd 설치
- libpcap, libpng, libgd 를 소스로 설치한 후 bandwidth 컴파일시 제대로 인식을 못한다면 각각의 devel (RPM) 을 설치해 준다.
| [root@server3 bandwidthd-2.0.1]# ./configure --help `configure' configures this package to adapt to many kinds of systems. Usage: ./configure [OPTION]... [VAR=VALUE]... To assign environment variables (e.g., CC, CFLAGS...), specify them as VAR=VALUE. See below for descriptions of some of the useful variables. Defaults for the options are specified in brackets. Configuration: -h, --help display this help and exit --help=short display options specific to this package --help=recursive display the short help of all the included packages -V, --version display version information and exit -q, --quiet, --silent do not print `checking...' messages --cache-file=FILE cache test results in FILE [disabled] -C, --config-cache alias for `--cache-file=config.cache' -n, --no-create do not create output files --srcdir=DIR find the sources in DIR [configure dir or `..'] Installation directories: --prefix=PREFIX install architecture-independent files in PREFIX [/usr/local] --exec-prefix=EPREFIX install architecture-dependent files in EPREFIX [PREFIX] By default, `make install' will install all the files in `/usr/local/bin', `/usr/local/lib' etc. You can specify an installation prefix other than `/usr/local' using `--prefix', for instance `--prefix=$HOME'. For better control, use the options below. Fine tuning of the installation directories: --bindir=DIR user executables [EPREFIX/bin] --sbindir=DIR system admin executables [EPREFIX/sbin] --libexecdir=DIR program executables [EPREFIX/libexec] --datadir=DIR read-only architecture-independent data [PREFIX/share] --sysconfdir=DIR read-only single-machine data [PREFIX/etc] --sharedstatedir=DIR modifiable architecture-independent data [PREFIX/com] --localstatedir=DIR modifiable single-machine data [PREFIX/var] --libdir=DIR object code libraries [EPREFIX/lib] --includedir=DIR C header files [PREFIX/include] --oldincludedir=DIR C header files for non-gcc [/usr/include] --infodir=DIR info documentation [PREFIX/info] --mandir=DIR man documentation [PREFIX/man] X features: --x-includes=DIR X include files are in DIR --x-libraries=DIR X library files are in DIR System types: --build=BUILD configure for building on BUILD [guessed] --host=HOST build programs to run on HOST [BUILD] Optional Packages: --with-PACKAGE[=ARG] use PACKAGE [ARG=yes] --without-PACKAGE do not use PACKAGE (same as --with-PACKAGE=no) --with-x use the X Window System Some influential environment variables: CC C compiler command CFLAGS C compiler flags LDFLAGS linker flags, e.g. -L<lib dir> if you have libraries in a nonstandard directory <lib dir> CPPFLAGS C/C++ preprocessor flags, e.g. -I<include dir> if you have headers in a nonstandard directory <include dir> CPP C preprocessor Use these variables to override the choices made by `configure' or to help it to find libraries and programs with nonstandard names/locations. [root@server3 bandwidthd-2.0.1]# ./configure - 기본 설치 폴더 /usr/local/bandwidthd - 중략 configure: creating ./config.status config.status: creating Makefile config.status: creating config.h [root@server3 bandwidthd-2.0.1]# make gcc -Wall -g -O2 -I/usr/local/include -DHAVE_CONFIG_H -DINSTALL_DIR="\"/usr/local/bandwidthd\"" -c -o bandwidthd.o bandwidthd.c gcc -Wall -g -O2 -I/usr/local/include -DHAVE_CONFIG_H -DINSTALL_DIR="\"/usr/local/bandwidthd\"" -c -o graph.o graph.c graph.c: In function ‘GraphData’: graph.c:697: warning: pointer targets in passing argument 5 of ‘gdImageString’ differ in signedness graph.c:698: warning: pointer targets in passing argument 5 of ‘gdImageString’ differ in signedness graph.c:712: warning: pointer targets in passing argument 5 of ‘gdImageString’ differ in signedness graph.c:713: warning: pointer targets in passing argument 5 of ‘gdImageString’ differ in signedness graph.c: In function ‘PrepareYAxis’: graph.c:762: warning: pointer targets in passing argument 5 of ‘gdImageString’ differ in signedness graph.c: In function ‘PrepareXAxis’: graph.c:814: warning: pointer targets in passing argument 5 of ‘gdImageString’ differ in signedness graph.c:848: warning: pointer targets in passing argument 5 of ‘gdImageString’ differ in signedness gcc -Wall -g -O2 -I/usr/local/include -DHAVE_CONFIG_H -DINSTALL_DIR="\"/usr/local/bandwidthd\"" -c -o conf.tab.o conf.tab.c gcc -g -O2 -I/usr/local/include -DHAVE_CONFIG_H -c -o conf.l.o conf.l.c gcc -Wall -g -O2 -I/usr/local/include -DHAVE_CONFIG_H -DINSTALL_DIR="\"/usr/local/bandwidthd\"" bandwidthd.o graph.o conf.tab.o conf.l.o -o bandwidthd -L/usr/local/lib -lpcap -lgd -lpng -lm -lresolv -lnsl [root@server3 bandwidthd-2.0.1]# make install /usr/bin/install -c -d /usr/local/bandwidthd/etc /usr/bin/install -c -d /usr/local/bandwidthd/htdocs /usr/bin/install -c -m755 -s bandwidthd /usr/local/bandwidthd if [ ! -f /usr/local/bandwidthd/etc/bandwidthd.conf ] ; then /usr/bin/install -c -m644 etc/bandwidthd.conf /usr/local/bandwidthd/etc/ ; fi /usr/bin/install -c -m644 htdocs/legend.gif /usr/local/bandwidthd/htdocs /usr/bin/install -c -m644 htdocs/logo.gif /usr/local/bandwidthd/htdocs [root@server3 bandwidthd-2.0.1]# |
5. bandwidthd + Apache 설정
bandwidthd 설정 [root@server3 etc]# pwd /usr/local/bandwidthd/etc [root@server3 etc]# ls bandwidthd.conf [root@server3 etc]# vi bandwidthd.conf #################################################### # Bandwidthd.conf # # Commented out options are here to provide # documentation and represent defaults # Subnets to collect statistics on. Traffic that # matches none of these subnets will be ignored. # Syntax is either IP Subnet Mask or CIDR - 서브넷에 대한 트래픽을 축정하기 위해 설정하는 부분이다. subnet 10.0.0.0 255.0.0.0 subnet 192.168.0.0/16 subnet 172.16.0.0/12 # Device to listen on # Bandwidthd listens on the first device it detects # by default. Run "bandwidthd -l" for a list of # devices. #dev "eth0" - 인터페이스 정보를 나타낸다. ################################################### # Options that don't usually get changed # An interval is 2.5 minutes, this is how many # intervals to skip before doing a graphing run #skip_intervals 0 - default 로 2.5분에 그래프화 한다. # Graph cutoff is how many k must be transfered by an # ip before we bother to graph it #graph_cutoff 1024 -1M 이상의 트래픽을 발생시키는 IP에 대해서만 그래프에 기록한다. #Put interface in promiscuous mode to score to traffic #that may not be routing through the host machine. #promiscuous true - pormiscuous 모드를 사용할 것인지 여부를 묻는다. promiscuous 모드 사용시 모든 패킷을 모니터링 하고, 사용하지 않을 경우에는 해당 IP에 관계된 트래픽만 모니터링한다. #Log data to cdf file htdocs/log.cdf #output_cdf false - 로그 데이터를 htdocs/log.cdf 파일에 남길 것인지 여부를 결정한다. #Read back the cdf file on startup #recover_cdf false - 시작시 cdf 로그 파일을 읽을 것인지를 지정한다. #Libpcap format filter string used to control what bandwidthd see's #Please always include "ip" in the string to avoid strange problems #filter "ip" #Draw Graphs - This default to true to graph the traffic bandwidthd is recording #Usually set this to false if you only want cdf output or #you are using the database output option. Bandwidthd will use very little #ram and cpu if this is set to false. #graph true - 그래프를 나타낼 것인지를 지정한다. #Set META REFRESH seconds (default 150, use 0 to disable). #meta_refresh 150 [root@server3 bandwidthd]# pwd - bandwidthd 의 Docuroot 폴더이다. /usr/local/bandwidthd/htdocs [root@server3 bandwidthd]# ls legend.gif logo.gif [root@server3 bandwidthd]# pwd /usr/local/bandwidthd [root@server3 bandwidthd]# ./bandwidthd - bandwidthd 를 실행시켜주면 ./htdocs 폴더에 *.html 파일이 생성된다. [root@server3 bandwidthd]# ls bandwidthd etc htdocs [root@server3 bandwidthd]# cd htdocs/ [root@server3 htdocs]# ls index.html index2.html index3.html index4.html legend.gif logo.gif Virtual host 설정 [root@server3 extra]# pwd /usr/local/apache/conf/extra [root@server3 extra]# ls httpd-autoindex.conf httpd-info.conf httpd-mpm.conf httpd-userdir.conf httpd-dav.conf httpd-languages.conf httpd-multilang-errordoc.conf httpd-vhosts.conf httpd-default.conf httpd-manual.conf httpd-ssl.conf tomcat.conf [root@server3 extra]# vi httpd-vhosts.conf - bandwidthd 정보를 추가시켜준다. <VirtualHost 10.10.33.3:80> ServerAdmin root@server3.co.kr DocumentRoot "/usr/local/apache/htdocs/bandwidthd" </VirtualHost> 아파치 Docuroot에 bandwidth의 Docuroot를 소프트 링크 건다. [root@server3 htdocs]# pwd /usr/local/apache/htdocs [root@server3 htdocs]# ln -s /usr/local/bandwidthd/htdocs ./bandwidthd [root@server3 htdocs]# ll 합계 20 lrwxrwxrwx 1 root root 39 2월 4 23:50 bandwidthd -> /usr/local/bandwidthd/htdocs drwxrwxrwx 12 1000 1000 4096 1월 22 15:14 bbs -rw-r--r-- 1 root root 73 2월 2 15:55 index.html -rw-r--r-- 1 root root 18 1월 22 12:41 phpinfo.php drwxr-xr-x 10 root root 4096 1월 22 18:15 xe drwxr-xr-x 10 root root 4096 1월 22 18:21 xe-2 [root@server3 htdocs]# /usr/local/apache/bin/apachectl restart - 아파치 서버를 재시작해준다. |
6. bandwidth 실행

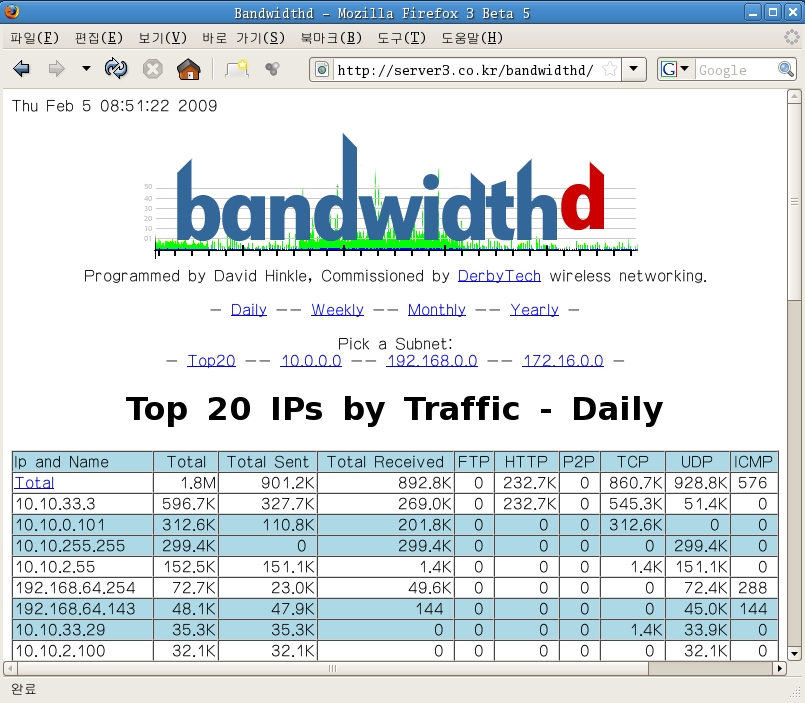

웹 브라우저에서 server3.co.kr/bandwidthd or 10.10.33.3/bandwidthd 라고 입력한다.
